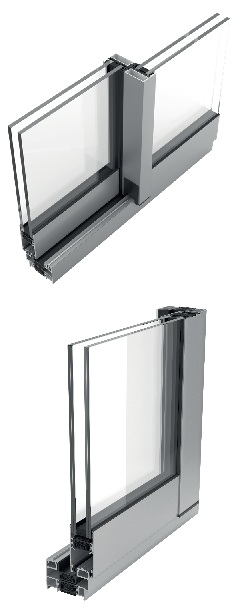

Sliding system with thermal break.
Today’s window frames are characterised
by an optimum combination of design and
insulation, with an increasing emphasis on
making rooms brighter. The S-LIM system brings
the glass to the fore without compromising on
excellent technical performance. This series is
characterised by its minimalist aesthetics, with
the central gasket visible for 35 mm, and by its
simple and intuitive construction.
The S-LIM range has Environmental Product
Declaration, making it an excellent choice for
achieving sustainable building certifications
such as BREEAM, LEED or GREEN.
Technical features
Design:The new version of the S-LIM sliding window
has been designed to create the minimum
visual interruption in the central node, as well as
reduced visibility in the frame and sash, giving
it a modern and minimalist aesthetic in line with
contemporary architectural trends.
Features:The bearings of the S-LIM system allow the
sliding of sashes up to 300 kg. There are
two options for the locking system, either
embedded or multi-point with the possibility of
micro-ventilation.

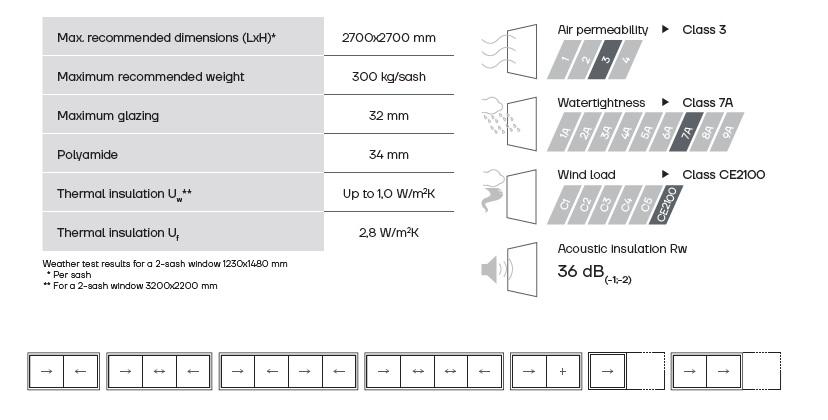

Benefits:The S-LIM series is classified as Class 3, 7A and
CE2100 in air permeability, watertightness and
wind resistance tests.
Possibilities:It is also possible to create 2-, 3- and 4-sash
configurations in 2-, 3- and 4-tracks frames.
It is also possible to fit panels and fixings
in the same frame, saving material and
manufacturing time, as well as the hinged
solution, which allows the opening to be
completely hidden within the enclosure.
