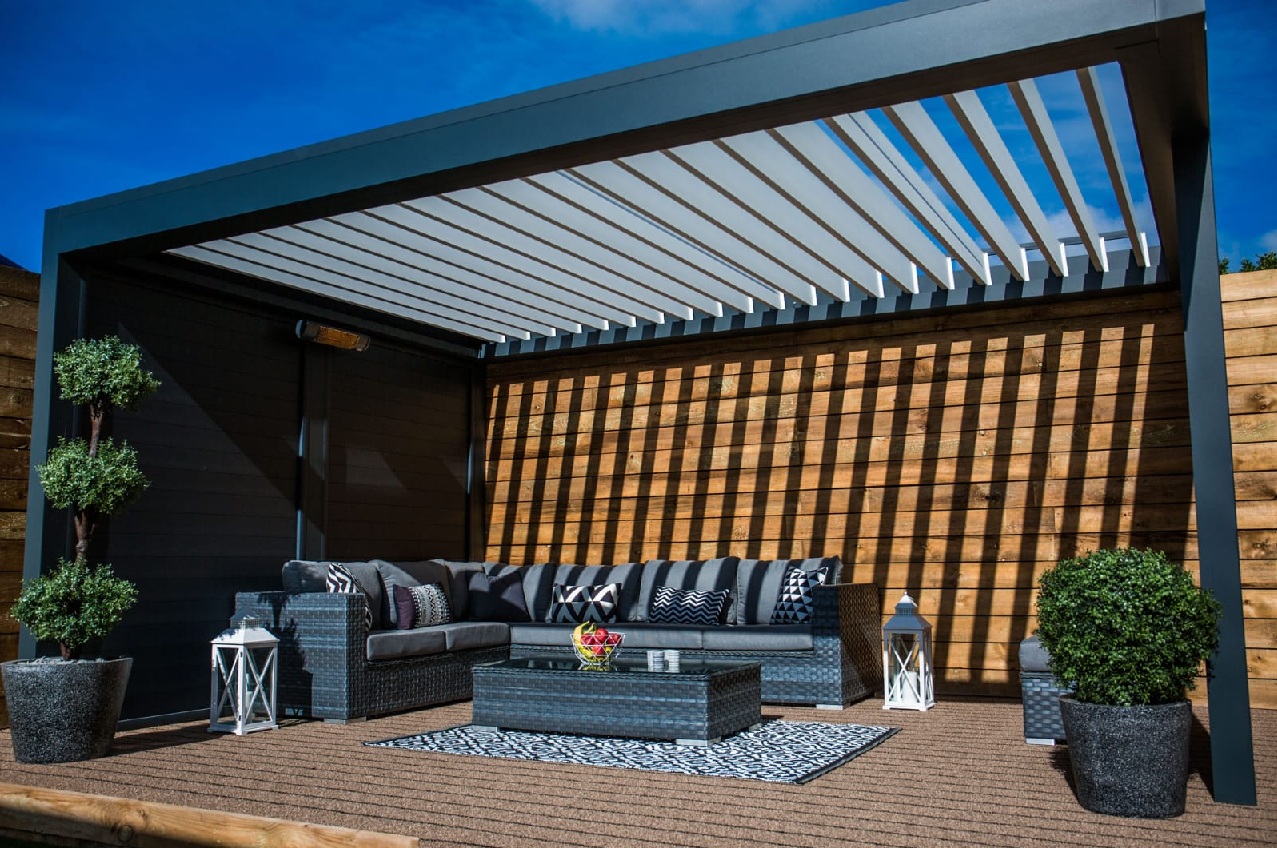

Pergola
Pergola

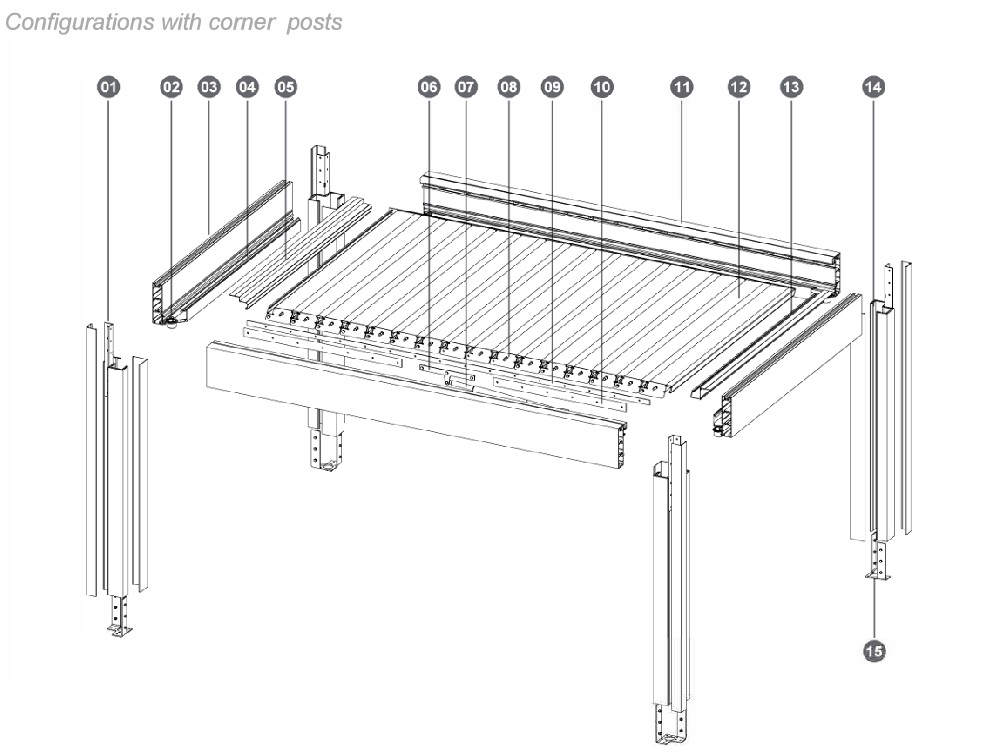

Technical data
Features

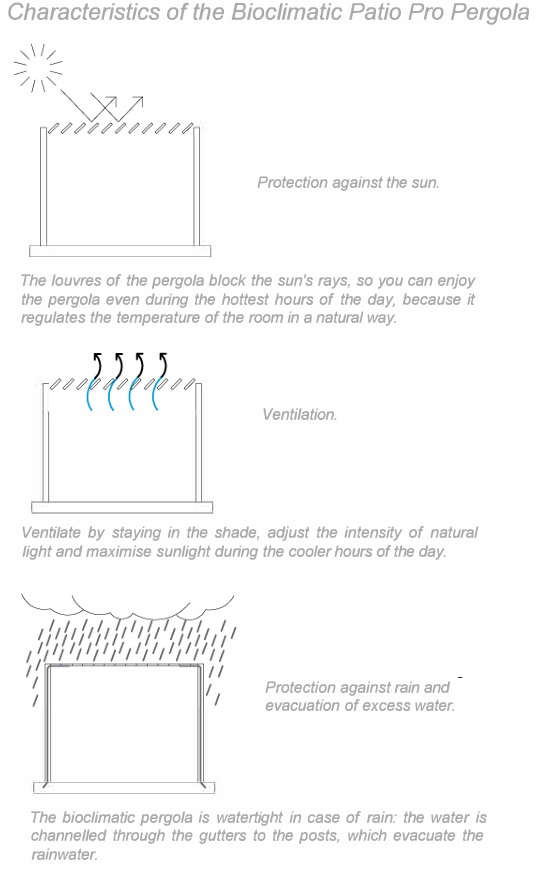

Waterproof roof: Adjustable louvres from 0° to 135°

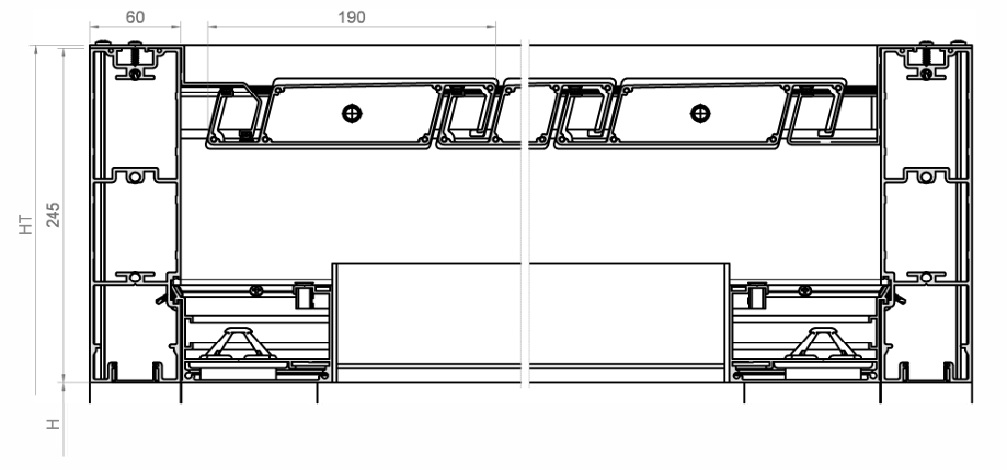

Louvre dimensions: 190x45,5 mm
Post dimensions: 150x150x2,5 mm
Beam dimensions: 245 mm (opci6n de 280 mm)

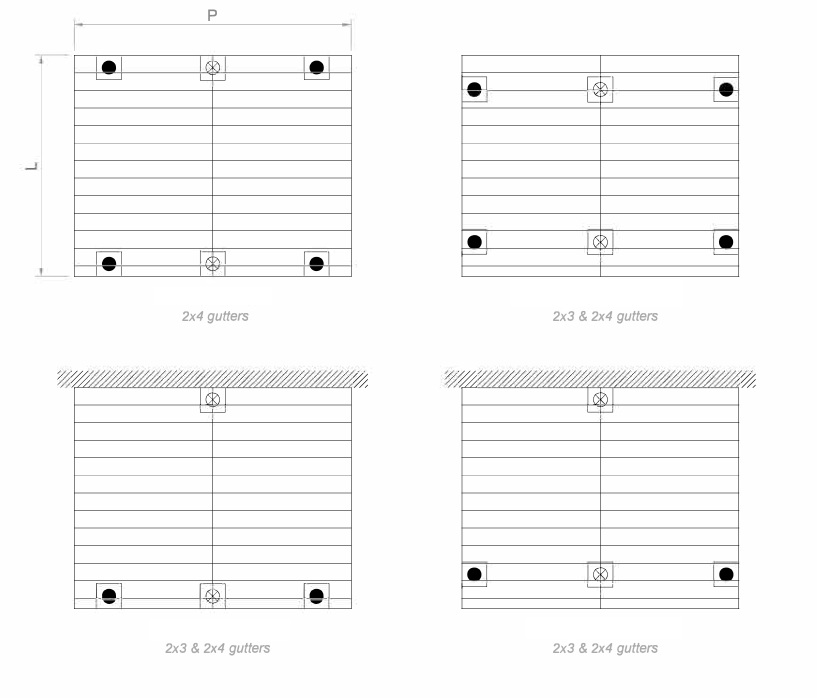

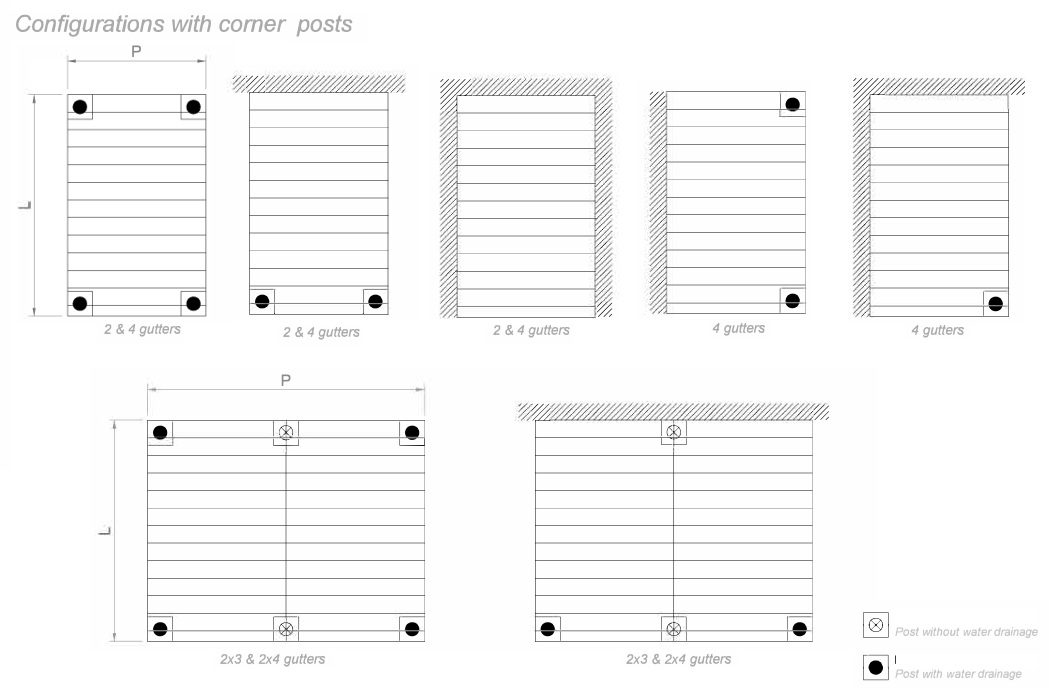

Water evacuation: In posts, with free or channeled drainage in the ground .

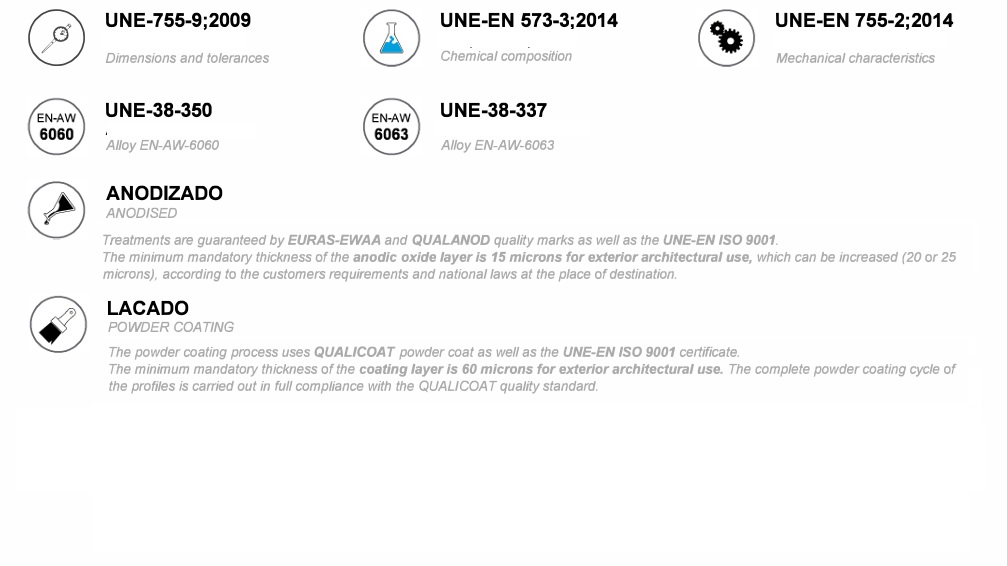

Materials: 6060-6063 TS aluminium and stainless steel .
Cylinder drive: Compact and versatile cylinder drive in 24 V version for louvre orientation with a tensile and compressive force of 1200 N.
Maximum dimensions:
