Hinged system with thermal break.
Simple joinery that blends in with the overall
design is essential to achieve an aesthetic
balance. The straight lines of the RS-65 CE
Series provide discretion and add elegance to
the space in which they are installed.
Technical features
Design:The straight lines of the RS-65 CE Series
provide discretion and add elegance to the
space in which it is installed. It avoids the
prominence of the elements to achieve a result
where the window is perfectly integrated into the
work as a whole.

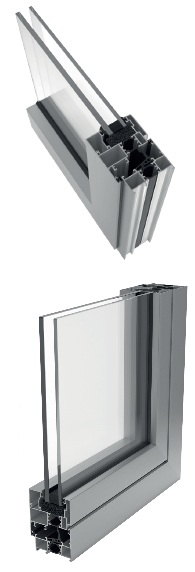

Features: The RS-65 CE has a 65 mm frame depth and
a 24 mm polyamide thermal break, giving it
exceptional performance.

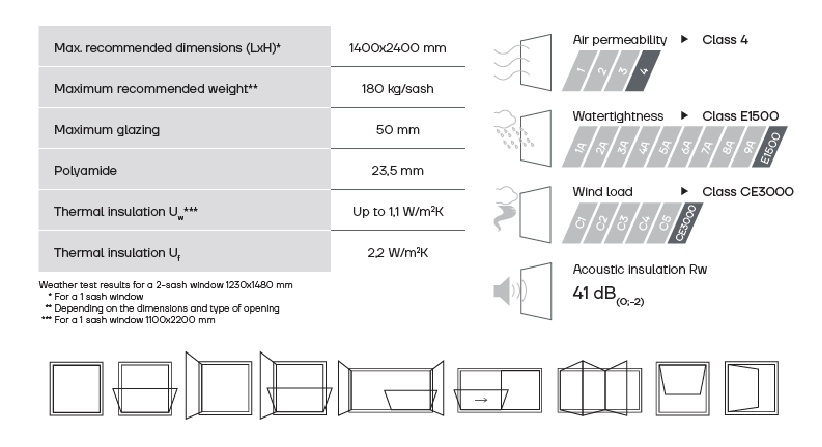

Benefits: The RS-65 CE system achieves excellent results
in air permeability, watertightness and wind load
resistance tests, achieving Class 4, E1500 and
CE3000 classifications..
Possibilities:The RS-65 CE series allows the configuration
of windows with inward or outward opening
sashes, tilt and turn, projecting, single or double
sash and fixed; also folding and parallel. The
RS-65 CE has a wide range of adjustable
latching points and a concealed hardware
option for both swing and tilt and turn doors..
