Minimal sliding system with thermal break.
The innovative CRS-140 minimalist sliding door
with thermal break represents minimalism at
its full expression, combining style and light
with maximum safety, comfort and energy
efficiency. With a single system of profiles,
it can be easily adapted to a variety of
configurations and installations, covering a
wide range of project types.

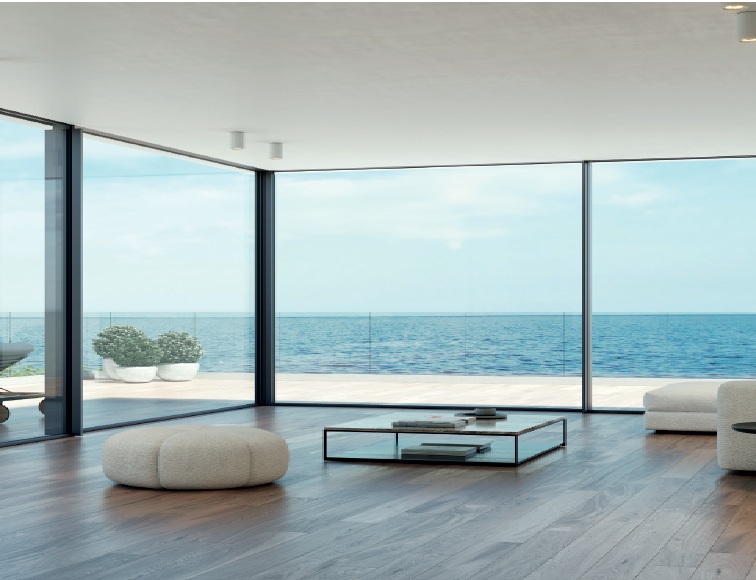

Subtle and elegant, this large-size solution
guarantees maximum transparency due to
to the 25 mm visible interlock and its invisible
horizontal profiles. It also incorporates
advanced technical and design solutions such
as continuous flooring and open corner..
Technical features
Design:A large, minimalist sliding system designed to
meet contemporary architectural trends. This
innovative range, with its subtle and elegant
design, guarantees maximum glazed area
due to the 25 mm visible central node and the
possibility of concealing the frame and sash all
round..

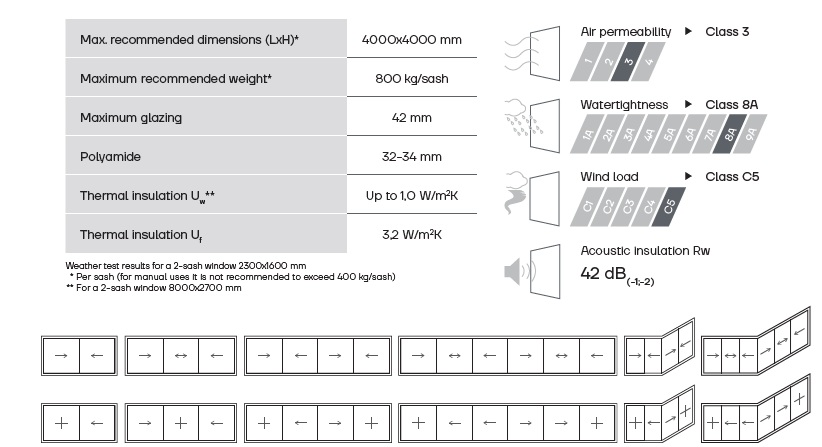

Features: Maximum dimensions of 4000x4000 mm,
weights of up to 800 kg and a maximum glass
thickness of 42 mm.
Benefits: The system also boasts exceptional technical
performance in terms of thermal insulation,
achieving excellent results in air permeability,
watertightness and wind load resistance tests
(Class 3 / 8A / C5), acoustic insulation (42 dB)
and thermal transmittance (Uw: up to 1,0 W/m2K).

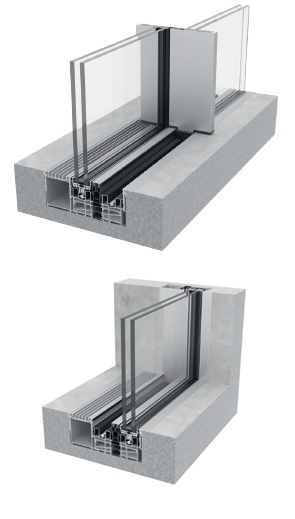

Possibilities:This innovative range allows a variety of
configurations to be created using the same
basic profiles. It offers various combinations of
crossover profiles, while maintaining a 25 mm
visible section, and different side assembly
solutions with visible or hidden sashes. It
features advanced solutions for concealed
paviment (with the same finish or in aluminium
profile) and free open corner, as well as a
unique patented system with two options for
installing bearings in the sash or frame, while
maintaining the same profiles.
